Home/Products/Peelable & Temporary Protective Coatings/Electronic Protection & Masking Materials/Peelable PCB Solder Mask
Electronic Protection & Masking Materials

Peelable PCB Solder Mask

Masks selected circuit-board areas during soldering and assembly. The temporary film covers connectors, holes or keep-out zones and is removed after the protected production stage.

Request a Quote ↗Explore product ↓

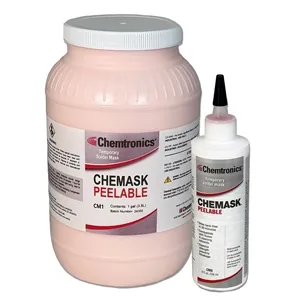

Peelable PCB Solder Mask — Temporary PCB masking application Enlarge ↗

Temporary PCB masking application

COATING SYSTEM

What this product is designed to do

Masks selected circuit-board areas during soldering and assembly. The temporary film covers connectors, holes or keep-out zones and is removed after the protected production stage.

Where it fits

LeaderCoat supplies peelable pcb solder mask for selective wave-solder protection, pcb rework masking, temporary protection of connectors and pads. We coordinate the material and packaging with the substrate, application equipment and purchasing volume of your project.

PRODUCT SPECIFICATIONS

Material, application and supply.

Match the coating form and application process to the surface you are protecting. These product characteristics provide a clear starting point for your purchase.

Peelable PCB Solder Mask
Material systemPeelable temporary solder mask
Suitable surfacesPCB areas requiring temporary solder protection
Application methodDispensing or controlled coating
Packaging & supplyDispensing bottles or production containers to suit the application process
Product categoryElectronic Protection & Masking Materials
TECHNICAL SELECTION

Key points for specification

Thermal cycle

Specify peak temperature and duration at the masked area, not only the oven set point.

Electronic cleanliness

Assess ionic residue, peel completeness and compatibility with cleaning and inspection.

WHERE IT IS USED

Application areas

From the prepared substrate to the finished surface, the coating is configured around the application. We supply materials for new installations, maintenance work and repeat production.

01

Selective wave-solder protection

02

PCB rework masking

03

Temporary protection of connectors and pads

Send PCB finish, solder profile, masked geometry and post-process cleanliness criteria.

APPLICATION & PROCESS

From surface preparation to service.

Apply the mask accurately to the selected areas, keeping intended solder joints clear. Complete drying or curing before the thermal process, then peel and inspect the cleared area.

Compare products in this category →
LEADERCOAT

Supply that fits your business.

Distribution supply

Build a range around local demand, preferred pack sizes and repeat purchasing. We organise the product selection, packaging requirements and order mix together so each shipment supports your sales plan.

Project supply

Plan the coating system by substrate, area and application sequence. Share drawings, operating conditions and delivery stages so primer, protective layers and finishing materials can be coordinated for the job.

Production supply

Connect material selection with your coating, dispensing or printing process. Define batch demand, application equipment and the production cycle to organise suitable packaging and recurring deliveries.

SPECIFY YOUR REQUIREMENT

Details for a useful quotation

Send PCB finish, solder profile, masked geometry and post-process cleanliness criteria.

Discuss your requirements ↗
  1. Component, substrate and protected area
  2. Thermal and chemical process sequence
  3. Residue, electrical and cleanliness limits
  4. Removal method and inspection criteria
BEFORE YOU SPECIFY

Questions before selection

How is this coating applied?

Apply the mask accurately to the selected areas, keeping intended solder joints clear. Complete drying or curing before the thermal process, then peel and inspect the cleared area.

What packaging can I order?

Dispensing bottles or production containers to suit the application process

What information is needed for a quotation?

Send PCB finish, solder profile, masked geometry and post-process cleanliness criteria.
